Absolute Aeotec Illumino ZWave 700 Wall Dimmer

The Aeotec illumine ZWave Dimmer Switch installs in place of a standard wall switch, making it a smart dimmer.  Local on, off, and dimming control is combined with ZWave.  Pair it with a Z-Wave smart hub for scheduling, automation, and remote control.

The Illumina ZWave dimmer uses Aeotec’s Gen7 technology which includes a ZWave 700 series chip featuring the latest Zwave technology, a longer range, better security, enhanced wireless connection, and lower power consumption.  It also supports SmartStart for easier inclusion with compatible hubs.

The ZWA037 illumine dimmer support ZWave 700 plus it’s backward compatible with older ZWave.  It works with the Samsung and Aeotec SmartThings hub as well as other ZWave-certified systems.

illumine is smaller than most smart switches, at only 1.18 inches (30mm) deep so it fits more easily into tight single or multi-gang wall boxes.

illumine can be installed as a single gang (single switch) and can also work in a 3-way (2 switches) installation.  It works with a standard 3-way remote switch – it does not require a smart remote switch.

ZWA037 illumino Dimmer Features:

• In wall dimmer
• Works with incandescent, dimmable LED, dimmable halogen, and dimmable CFL bulbs
• Trailing edge dimming
• Local on/off/bright/dim
• ZWave 700 chip backward compatible with older Zwave
• S2 security
• SmartStart inclusion
• ZWave repeater
• Works as a single gang or 3 way
• 3-way uses standard remote switch – does not require a smart remote
• NEUTRAL WIRE REQUIRED

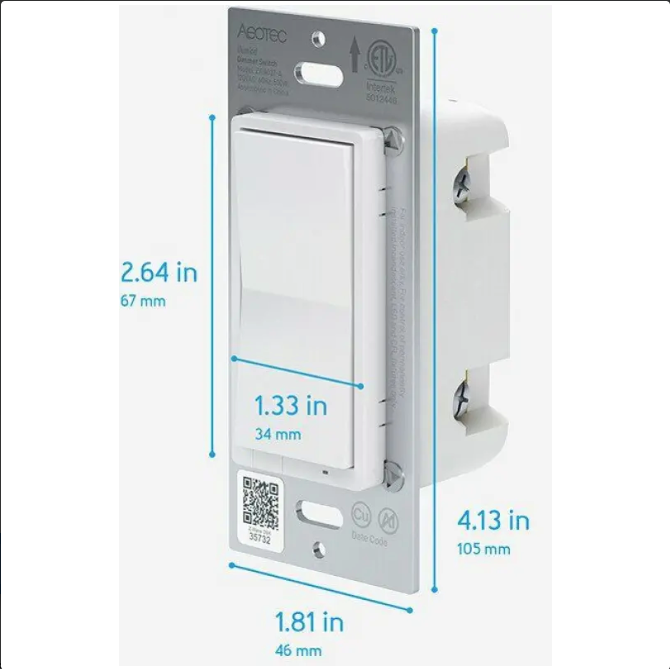

• Dimensions: 105x46x40mm
• 1-year Aeotec warranty
• cULus approved
