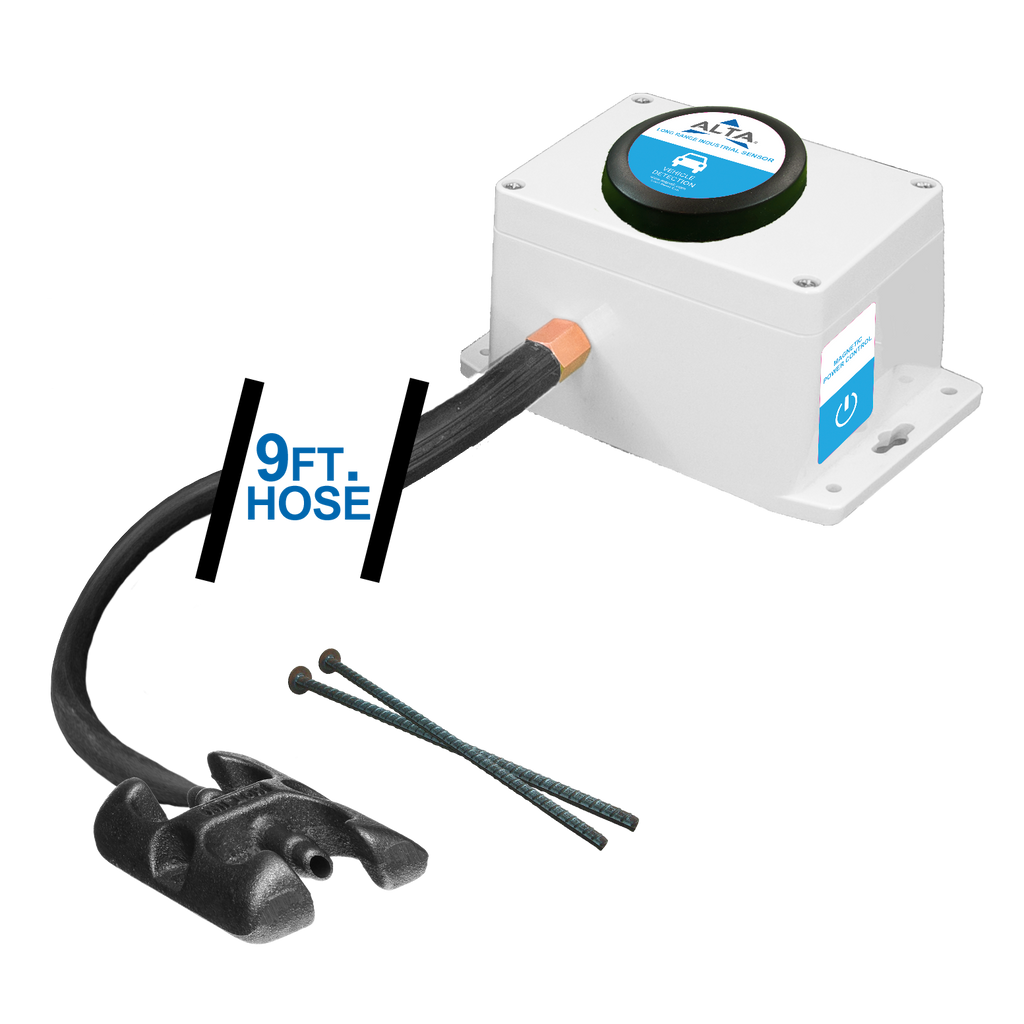

Absolute ALTA Industrial Vehicle Detect-Counter, 900MHZ

The Monnit wireless vehicle detect/counter sensor can be deployed to detect the presence of a vehicle or count oncoming traffic utilizing a 9 ft. pneumatic tube. Deployment is easy with the included hose anchor and mounting spikes. Simply turn the unit on with the included magnet, roll the hose out where you wish to record traffic data and pound the spikes into the asphalt. In software, select “Counting” or “Detecting” and begin recording data..

Monnit MNS2-9-IN-VS-TT Features

1,200+ foot range

12+ year battery life

80+ wireless sensors

Bank-level AES security

Up in 15 easy setup

Global ready (900, 920, 868 & 433 MHz)

Variation Specifications

Dimension: 4.528 in x 3.543 in x 3.155 in

Supply Voltage: 2.0 – 3.6 VDC

Max Operating Temperature: -40°C to +85°C ( -40°F to +185°F )

Power Supply: Magnet included with accessories

Vehicle Sensing Distance: Pneumatic tire tube

Weight: 6 lbs. (2.72 kg) with hose and accessories

ALTA Industrial Specifications

Supply Voltage: 2.0 – 3.8 VDC

Battery Type: Replaceable 3.6V, 1800mAH (single AA sized)

Battery Life: At 1 hour heartbeat setting, battery will last up to 10 years.**

Max Operating Temperature: -40° to 85°C (-40° to 185°F)

Optimal Battery Operating Temperature: +10°C to +50°C (+50°F to +122°F)

Solar Power Option: 3.0 VDC Solar Panel 600 mAH Rechargeable Battery (>2000 Charge Cycles – 80% of Initial Capacity)Charging Temperature Range: 0° to 45°C (32° to 113°F) Max Temperature Range: -20° to 60°C (-4° to 140°F)

Enclosure Material: IP65, NEMA 4X, CE rated, sealed, weatherproof enclosure

UL Rating: UL Listed to UL508-4x specifications (File E194432)

Dimension: 3.7 in x 2.32 in x 1.38 in

ALTA 900 MHz Specifications

Operating Frequency: 900 MHz Operating Frequency

Certifications: Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-G2SC1)Complies with Industry Canada standards. (IC: 9794A-G2SC1)

Device Range: Device Range Up to 1,200 ft. non-line-of-sight, wireless device range*

Security: Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
