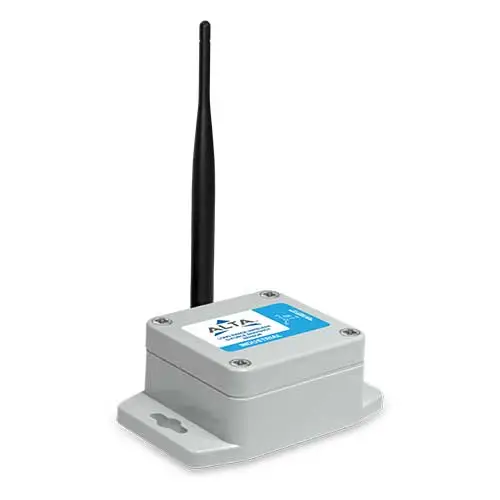

Absolute ALTA Industrial Wireless Accelerometer – G-Force Snapshot Sensor, 900MHZ

Monnit wireless accelerometers can be used in a host of applications where knowing impact, vibration, inclination, etc. is required.
The wireless accelerometer – G-Force snapshot sensor activates at a set time interval (defined by user) and measures g-force along X, Y and Z axes. Primary use is as an inclinometer or tilt sensor. There are three operating modes, ±2 G, ±4 G, or ±8G. The data displayed is the g-force on each axis, e.g. –> X: 0.001 Y: 0.031 Z: 1.01.

Monnit MNS2-9-IN-AC-GS Features

1,200+ foot range

12+ year battery life

80+ wireless sensors

Bank-level AES security

Up in 15 easy setup

Global ready (900, 920, 868 & 433 MHz)

Accelerometer Specifications

Sensitivity: 4096 count/g

Sensitivity Range: +/-2 G, +/-4 G, +/-8 G

Measurement Accuracy: ±2.5 % (Force: X, Y, Z)

Minimum G Force to Turn On/Wake Up: 0.050 g – 0.100 g

Bandwidth for Data Measurement: 800 Hz

Weight: 3.7 oz.

Variation Specifications

Security: Encrypt-RF® (256-bit key exchange and AES-128 CTR)

ALTA Industrial Specifications

Supply Voltage: 2.0 – 3.8 VDC

Battery Type: Replaceable 3.6V, 1800mAH (single AA sized)

Battery Life: At 1 hour heartbeat setting, battery will last up to 10 years.**

Max Operating Temperature: -40° to 85°C (-40° to 185°F)

Optimal Battery Operating Temperature: +10°C to +50°C (+50°F to +122°F)

Solar Power Option: 3.0 VDC Solar Panel 600 mAH Rechargeable Battery (>2000 Charge Cycles – 80% of Initial Capacity)Charging Temperature Range: 0° to 45°C (32° to 113°F) Max Temperature Range: -20° to 60°C (-4° to 140°F)

Enclosure Material: IP65, NEMA 4X, CE rated, sealed, weatherproof enclosure

UL Rating: UL Listed to UL508-4x specifications (File E194432)

Dimension: 3.7 in x 2.32 in x 1.38 in

ALTA 900 MHz Specifications

Operating Frequency: 900 MHz Operating Frequency

Certifications: Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-G2SC1)Complies with Industry Canada standards. (IC: 9794A-G2SC1)

Device Range: Device Range Up to 1,200 ft. non-line-of-sight, wireless device range*

Security: Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
