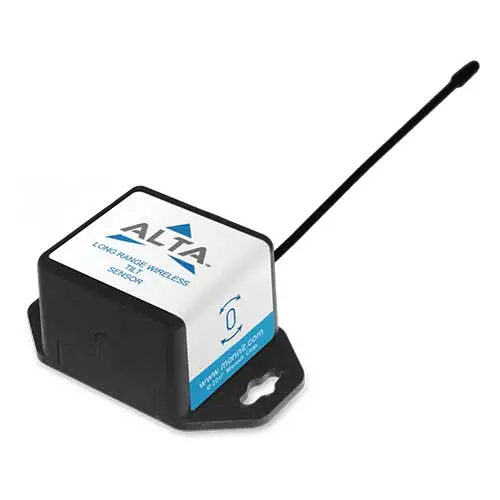

Absolute ALTA Wireless Accelerometer – Tilt Sensor – Coin Cell Powered, 900MHZ

Monnit wireless accelerometers can be used in a host of applications where knowing impact, vibration, inclination, etc. is required.
The wireless accelerometer – tilt sensor activates at a set time interval (defined by user) and converts accelerometer measurements to pitch and roll (0 to 180° -> -180° to 0°). The data is displayed in degrees with 0.1° of resolution.

Monnit MNS2-9-W1-AC-TL Features

1,200+ foot range

12+ year battery life

80+ wireless sensors

Bank-level AES security

Up in 15 easy setup

Global ready (900, 920, 868 & 433 MHz)

Accelerometer Specifications

Sensitivity: 4096 count/g

Sensitivity Range: +/-2 G, +/-4 G, +/-8 G

Measurement Accuracy: ±2.5 % (Force: X, Y, Z)

Minimum G Force to Turn On/Wake Up: 0.050 g – 0.100 g

Bandwidth for Data Measurement: 800 Hz

Measuring Range: 0° to 180° ? -180° to -0° (Rotating in positive direction)

Resolution: 0.1°

Weight: 3.7 oz.

Variation Specifications

Security: Encrypt-RF® (256-bit key exchange and AES-128 CTR)

ALTA Coin Cell Specifications

Battery Type: Replaceable 3.0V (CR2032) Coin Cell Battery

Dimension: 2.0 in x 1.125 in x 0.875 in

Max Operating Temperature: -7°C to +60°C ( 20°F to +140°F )

Optimal Battery Operating Temperature (Coin Cell): +10°C to +50°C ( +50°F to +122°F )

Supply Voltage: 2.0 – 3.8 VDC

Battery Life: At 1 hour heartbeat setting, coin cell battery will last up to 2 years. **

Enclosure Technology: Monnit PinchPower™ Wireless Sensor Enclosures

Enclosure Material: ABS

ALTA 900 MHz Specifications

Operating Frequency: 900 MHz Operating Frequency

Certifications: Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-G2SC1)Complies with Industry Canada standards. (IC: 9794A-G2SC1)

Device Range: Device Range Up to 1,200 ft. non-line-of-sight, wireless device range*

Security: Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
