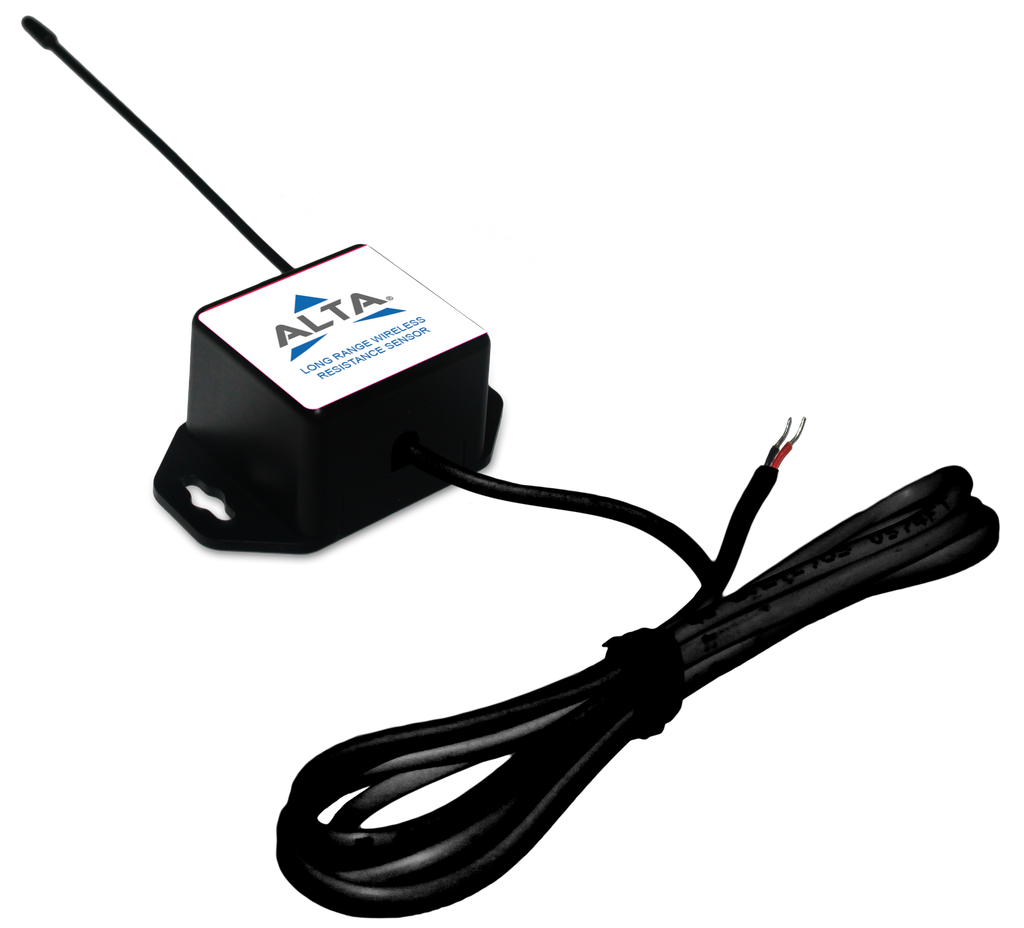

Absolute ALTA Wireless Resistance Sensor – Coin Cell Powered, 900MHZ

The Monnit Wireless Resistance Sensor outputs the resistance across a load. It is programmed to sleep for a user-given time interval (heartbeat) and then wakeup, send power to the load resistor, wait for it to stabilize, and convert the analog data, mathematically compute the resistance and transmit the data to the gateway, where it is then logged into a cloud service. The user can configure defined thresholds and have the system alert on threshold breaches. Data is recorded in Ohms.

Monnit MNS2-9-W1-RS-ST-L03 Features

1,200+ foot range

12+ year battery life

80+ wireless sensors

Bank-level AES security

Up in 15 easy setup

Global ready (900, 920, 868 & 433 MHz)

Resistance Sensor Specifications

Resistive Range (in Ohms): 0 – 145000

Specific Resistive Ranges (in Ohms): 0 – 530, 530 – 3500, 3500 – 27200, 27200 – 145000

Resolution: 2047 Unique Values Per Specific Range (11 bit): ~.25, ~1.71, ~13.3, ~70.8.

Accuracy: +/- 3% FS of Specific Range

User Calibrated Accuracy: +/- 1.5% FS of Specific Range

Lead Wire Length: 1 ft. ( 12 in.)

Variation Specifications

Resolution (in Ohms): 65535 Unique Values Per Specific Range (16 bit): ~3.4, ~125

User Calibrated Pressure Accuracy: +/- 2% FS of Specific Range

Weight: 0.7 oz. (19.84 g) with 3 ft. (0.91 m) lead

ALTA Coin Cell Specifications

Battery Type: Replaceable 3.0V (CR2032) Coin Cell Battery

Dimension: 2.0 in x 1.125 in x 0.875 in

Max Operating Temperature: -7°C to +60°C ( 20°F to +140°F )

Optimal Battery Operating Temperature (Coin Cell): +10°C to +50°C ( +50°F to +122°F )

Supply Voltage: 2.0 – 3.8 VDC

Battery Life: At 1 hour heartbeat setting, coin cell battery will last up to 2 years. **

Enclosure Technology: Monnit PinchPower™ Wireless Sensor Enclosures

Enclosure Material: ABS

ALTA 900 MHz Specifications

Operating Frequency: 900 MHz Operating Frequency

Certifications: Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-G2SC1)Complies with Industry Canada standards. (IC: 9794A-G2SC1)

Device Range: Device Range Up to 1,200 ft. non-line-of-sight, wireless device range*

Security: Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
