Name: Absolute ELK M1GCB M1 Gold Control Board Only
SKU: ELK-M1GCB
Availability: InStock

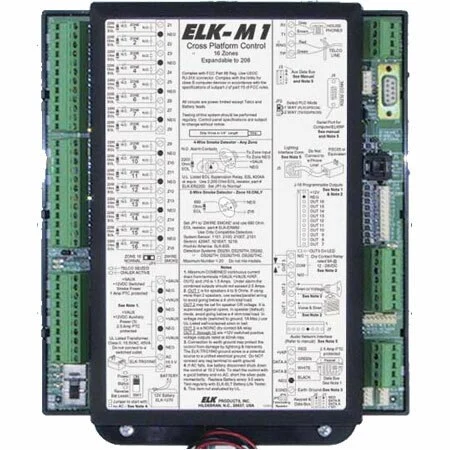

ELK-M1GCB MI Gold Control Board

The Elk M1 Gold is a robust Cross Platform controller and is compatible with many other industry standard systems and protocols. The M1 has a 500+-word vocabulary built in for announcing alarms, systems statuses and for use when dialing out to the up to 8 phone numbers the built in dialer can alert of alarms or status changes. The system is perfect for alerting owners of events such as critical temperature levels, water leaks, children arriving home from school, etc.. The built-in telephone control also allows owners to remotely control and arm or disarm zones.

For owners looking to access their M1 Gold via the internet the readily available M1XEP interface allows just that.

Other features customers are sure to appreciate are the flash memory firmware, RS-232 serial port, Ethernet connectivity option, and PC programming in English text.

ELK-M1GCB Control Board Features

Large zone capacity: 16 onboard zones expandable to 208
Wireless capability: Up to 144 zones
Two-way Listen-in interface
RS-232 Serial Port to interface to computers and peripheral devices
Time/Date stamped 512 event history log
Menu driven, full-text keypad programming – no manual required!
Voice Announcement of alarms, zone descriptions, status, etc.
500+ Word/phrase Vocabulary
Link up to 6 words/phrases per announcement
10 custom recordable word/phrases
13 On-board Outputs: 1 voice/siren, 1 siren driver, 1 form “C” relay and 10 low current (50mA) outputs
Can be partitioned into 8 separate areas and account numbers
User Codes: 199 (4 or 6 digit) with assignable authority levels
Arm levels: Away, Stay, Stay Instant, Night, Night Instant, Vacation

K-M1GCB Control Board Specifications

Flash Memory – Allows field updates to firmware electronically
Supports 4-wire (any zone) and 2-wire (zone 16) smoke detectors
Includes fire alarm verification routine”¢ Plug-in terminal blocks make service and pre-wires a snap!
Hardware “watchdog” and nonvolatile EEPROM memory
Supervised phone line, alarm output and aux. over current
Communications:
- True V.22 bis Modem for fast, reliable upload/download
- Optional Ethernet port for reporting operation / control or programming
- Built-in telephone remote control makes any phone a keypad
- Integrated Voice Dialer uses vocabulary or custom word/phrases
- Digital Communicator formats: SIA, Contact ID, 4+2 and Pager
- Installer Telephone (butt set) test feature
- Elk-RP PC software includes “conflict resolution” to easily highlight differences between control and PC
  - Dial-up, ethernet or local from RS-232 port or house phone jack
  - Automatic answering machine bypass
Automation & Integration:
- Create lifestyle enhancing comfort, convenience and security
- Powerful “Whenever/And/Then” RULES Programming allows almost any imaginable operation.
  - No need to chain rules together.
  - Any single “Whenever” event can have one or more ANDs and THENs (conditions and commands).
- Rules utilize easy to understand text based references
- Control lighting using RS-232 serial or 2-way Power Line Control (PLC) ports (On, Off, Dim All On, All Off commands)
- Sunset/Sunrise calculation and activation
- Transmit and receive custom serial ASCII messages
- Issue commands to Distributed Audio Systems (Russound, Proficient, Nuvo)
- Read temperature sensors and communicate with thermostats
- Turn on Tasks, Lights, Outputs via Keypad or Telephone Remote
Power Supply:
- Heavy Duty – 2.5 Amp power supply w/ 1 Amp continuous
- Dynamic battery test
- Master power switch and low battery disconnect
- PTC (fuseless) resettable overload protection
- Multiple auxiliary power terminals

K-M1GCB Control Board Includes

1 x ELK M1GCB ONLY

*Part# ELK-M1GCB does not include terminal blocks as this part is generally used as a replacement. If terminal blocks are needed, part# ELK-M1BLOCKS must be ordered separately.
