Absolute ELK WSV2 Water Shut Off Valve

ELK WSV2 Water Shutoff Valve

The ELK WSV2 is a stainless steel water 1″ shut off valve designed to be automatically opened and/or closed via alarm contacts. The WSV2 valve uses commercial grade seats and seals and meets NSF and NEMA approvals. The actuator (motor) has a gear drive with permanent (sealed) lubrication. Any SPDT relay can be used to trigger the valve.

* Note: The valve requires a 12VDC power supply (not included)

ELK WSV2 Features

• Rapid Opening / Closing Action
• Indoor Outdoor Use
• Provides Remote Shutoff of Main Water Supply

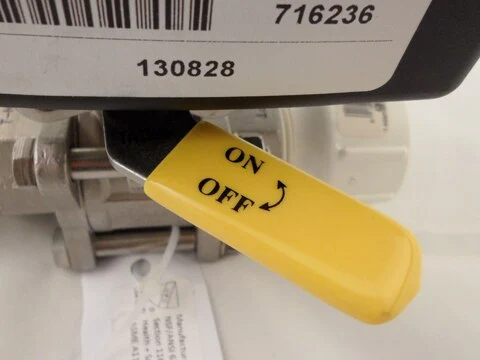

• Manual override handle
• Integrates with a Security or Automation Control (e.g. Elk-M1G or M1EZ8)
• Can be Integrated with a Simple Easy Button
• Can be Integrated with a Wireless Receiver and Wireless Pushbutton
• Simple 12 VDC, Four (4) Conductor Hookup

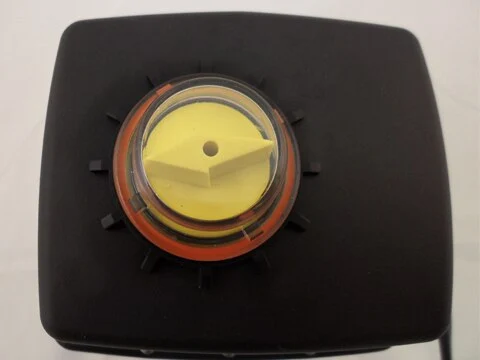

• Valve Direction/Water Flow Indication
• Two (2) Year Warranty
• MADE IN USA

ELK WSV2 Specifications

• Full Port, 2-way Ball Valve
• Stainless Steel Grade 316
• NSF61 Approved for Drinking Water
• 1 NPT threaded pipe connections
• Requires a 12 Volts DC Power Supply
• Nominal Current Draw: 800 mA to 1.5 Amp
• Actuating Speed: < 2 seconds
• NEMA 6P & 7D Enclosure
• Torque: 1.25 in. lbs.
• Connections: 18 gauge, 4 conductor cord
• Overall Dimensions: 7.75 H, 4.5 W, 4 D

ELK WSV2 Includes

• 1 X ELK WSV2 Water Shutoff Valve

ELK WSV2 Support

• WSV2 Valve Manual
