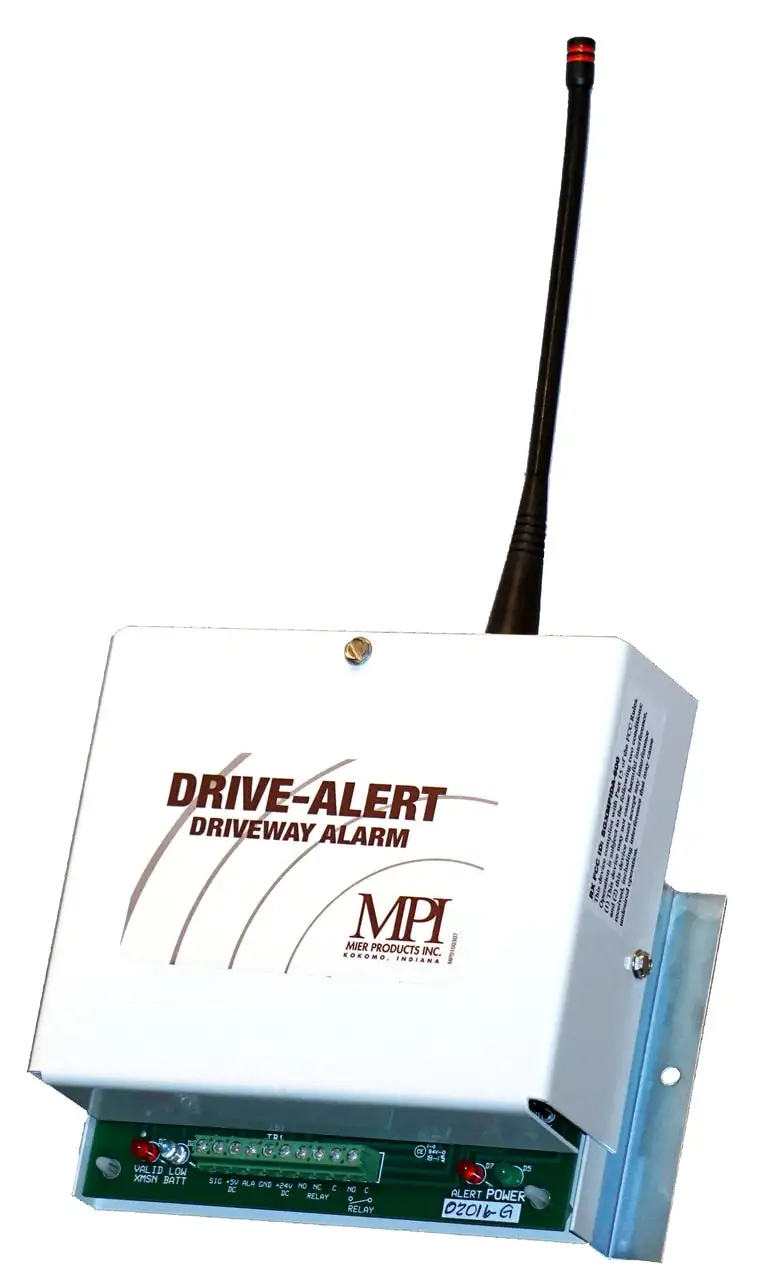

Absolute Mier DA-600CP Drive-Alert Wireless Control Panel

Mier DA-600CP Drive-Alert Wireless Control Panel Only

The Mier Wireless Drive-Alert’s DA600 Vehicle Annunciator control panel can either use a 24 volt DC output or Form C dry contacts allowing it to perform multiple tasks. On one hand, the device can trigger other bells, chimes etc. or it can send a signal to an alarm panel or Home Security Camera System. Either way, you’ll know what’s going on, that’s for sure!

DA600CP Control Panel Specifications

• INPUT POWER: 120 VOLTS AC 50-60 HZ, 3 WATTS
• OUTPUT POWER: 24 VOLTS DC AT 100 MILLIAMPERES
• FREQUENCY: 433.92 MHZ FIXED SUPERHETERODYNE
• ANTENNA: ¼ WAVE MONOPOLE FIXED BOLTED IN STEEL CASE 0 DBI GAIN
• RECEIVER: LINX TECHNOLOGIES MODEL LR
• DECODER: HOLTEK MODEL 658 IC TEN ADDRESS LINES 8 DIGITAL LINES.
• LAMPS/LEDS: POWER=RED, LO BATT=YELLOW, VALID XMSN=RED, ALARM=RED
• OUTPUT: PIEZO WHISTLE AND 24 VOLT RELAY OR FORM C DRY CONTACTS
• ALARM TIME: ADJUSTABLE 2 TO 12 SECONDS FOR EACH ALARM.
• OPERATING TEMP: 0 DEGREE F. TO +105 DEGREE F.
• WEIGHT: 2.5 POUNDS.

DA600CP Control Panel Includes

• 1 x DA-600 Control Panel

DA600CP Control Panel Support

• Mier DA-600 Manual
